Cable Calculator
A cable size calculator based on BS 7671 for calculating cable sizes for a variety of different cable types and installation methods.
*The PC version may differ to the mobile version
Carry out cable size calculations on the go.
Optimised for iPad, iPhone, Android Phones and Android Tablets
Calculations

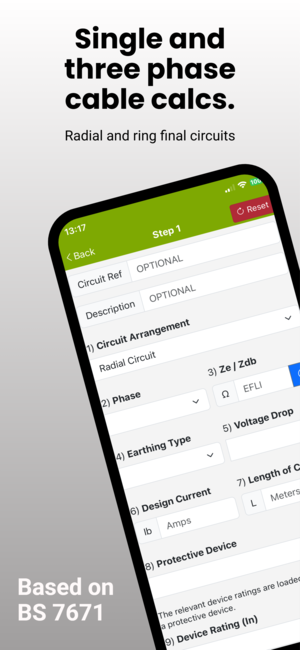

Carry out instant cable size calculations in two simple steps.
- Enter a circuit reference (optional).
- Enter a circuit description (optional).
- Select circuit arrangement (radial/ring).
- Select Single phase or three phase.
- Enter the design current.
- Enter the length of circuit.
- Enter the supply Uo voltage (Live-Earth voltage).
- Enter the supply Ze or Zdb value.
- Select the required maximum volt drop value.
- Select the earthing type.
- Select a protective device.
- Select the protective device rating.
- Select a cable type.
- Select the required maximum disconnection time.
- Next.
Cable Calculation – Step 2
The offered installation method options will depend on the selected cable type.
- Select an installation method.
- Select the ambient temperature (Ca).
- Select the number of cables grouped (Cg).
- Select the extent of cable that is covered by thermal insulation (Ci).
- Calculate.
The demo video may not reflect the current version of the app.
Validations

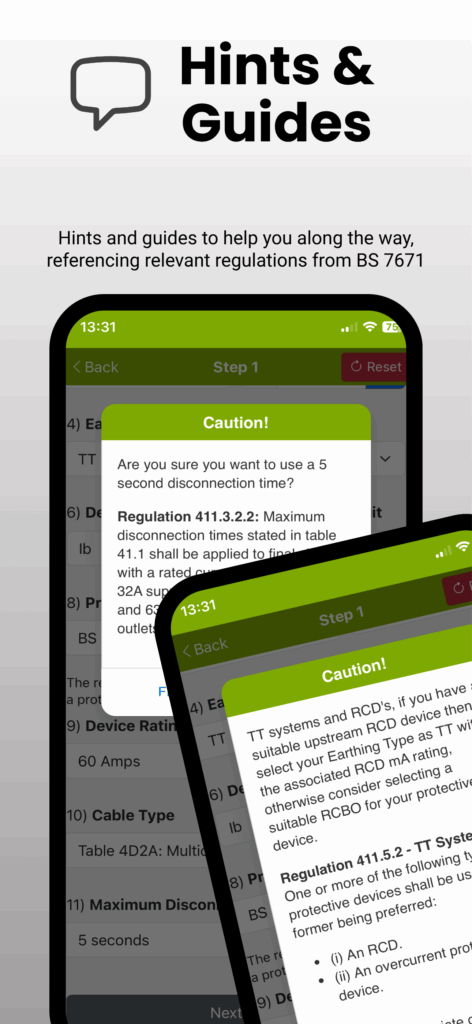

Between each step a validation function runs and checks against various specific regulations which prompts you for options..
Cable Calculation – Results

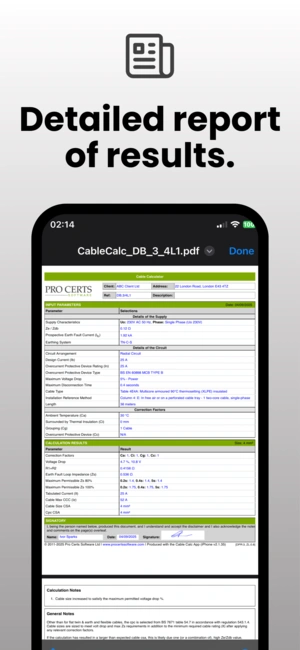

A table of results is displayed for the cable calculation results which can also be printed or saved as a PDF file.

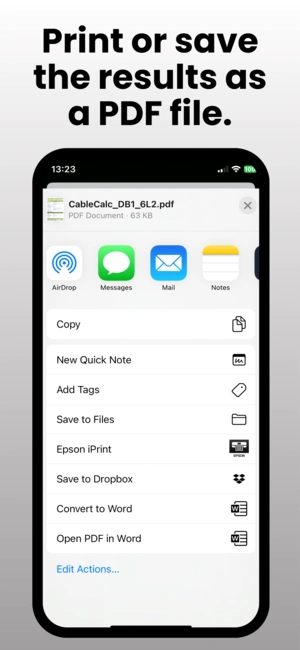

Print or save the calculation results

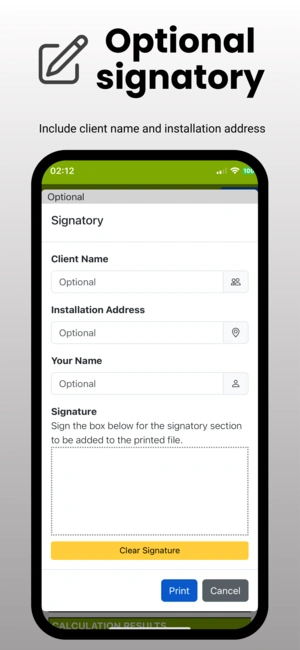

When you select to print or save the calculation results you are prompted to enter the following optional inputs which will be printed to the results file.
What people think about this app…
Summary of Features
Cable calculation software based on BS 7671.
Get the App
Download the Cable Calculator app and start calculating cable sizes today.
*PC version may differ to the mobile version
