MCCB Max Zs Values

The maximum Zs value for MCCB’s varies depending on the manufacturer of the BS EN 60947-2 protective device.

Trying to locate the manufactures specific Zs chart for a particular MCCB can be tiresome and very time consuming, which is why we have added a number of manufacture BS EN 60947-2 Zs charts to our Max Zs Values App.

Manufactures Zs tables include some for Crabtree,  Merlin, Dorman Smith, Hager, Telemacanique, GE, Eaton, Square D. The included MCCB Zs charts includes various MCCB’s, Frames and types from a variety of manufactures.

In addition of the MCCB charts also included are the common BS EN 60898, 3871, 61009, BS 88 fuses, RCBO’s and MCB’s  along with many more.

MCCB Zs Charts PDF

Many of the manufacture Zs value charts for MCCB’s are in PDF format which can also be printed directly from inside the app. Navigate from the home screen to ‘Max Zs Values’ >  ‘60947-2 Manufacturer Devices’ > select manufacturer. Once you have opened a PDF file you can print the MCCB PDF Zs chart by tapping the printer icon at the top of the screen (on some android devices tapp the “?” icon to print)

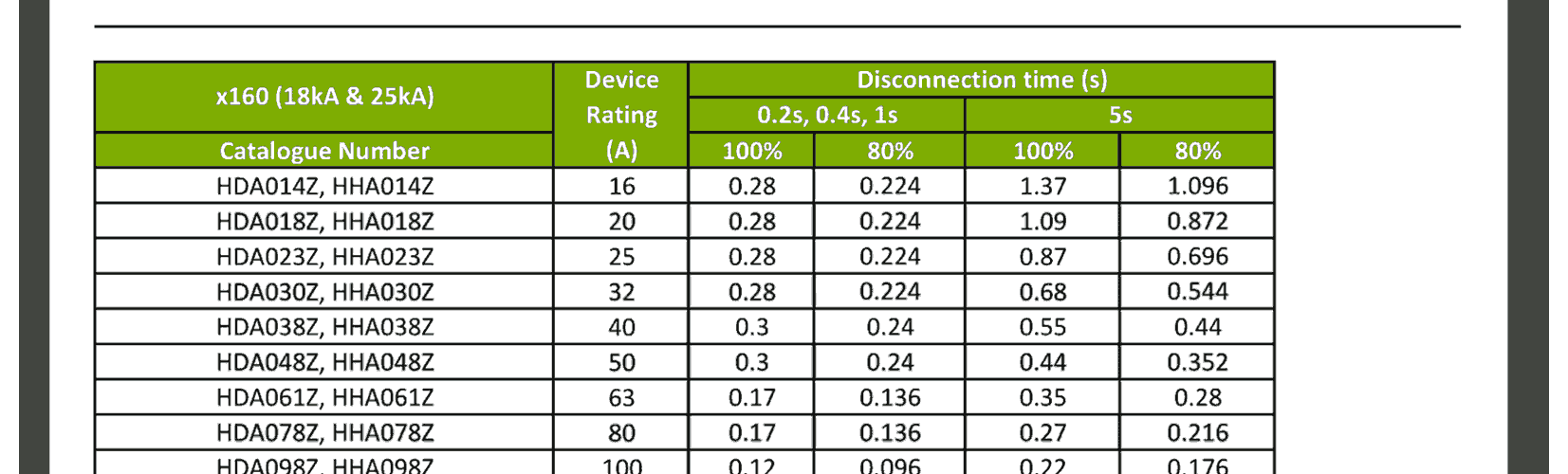

MCCB Zs Table
Max Zs Values Calculator

Max Zs for 60974-2 MCCB

If you have any specific MCCB Zs charts you would like us to add to the Max Zs app then please send them to info@pro-certs.com.

Please ensure the tables are to the current version of the wiring regulations and factor in the Cmin factor @ 230V.

The Cmin factor is 230 x 0.95 = 218.5 volts, therefore to calculate Zs: 230 x 0.95 = 218.5, 218.5 / la = Zs.

MCCB Settings

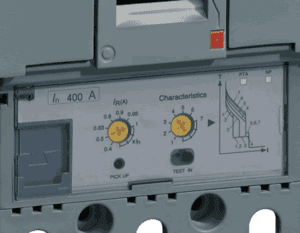

Many MCCB’s can be adjusted to suit individual requirements, the settings of an MCCB can affect the maximum permitted Zs value. The setting of an MCCB can include I2t, Ir, lsd, li, lg, xIn.

The settings are for over current protection (Ir), over current protection time setting (tr), short circuit protection (lsd), short circuit time delay (Tsd), instantaneous current setting (li), earth fault protection or ground fault protection (lg).

MCCB Setting Options:

  • Ir = Long Time Current Thermal Setting | Protection against overload
  • tr = Long Time Delay Setting (seconds) | Protection against overload
  • Im / lsd = Short Time (Magnetic) Setting | Protection against short circuit
  • Tm / Tsd = Short Time Delay Setting (seconds) | Protection against short circuit
  • li = Instantaneous Setting | Protection against dead shorts
  • lg = Earth Protection Setting | Earth protection
  • tg = Earth Protection Time Delay setting | Earth Protection​

Refer to the manufactures documentation on how to correctly set up the MCCB settings.
